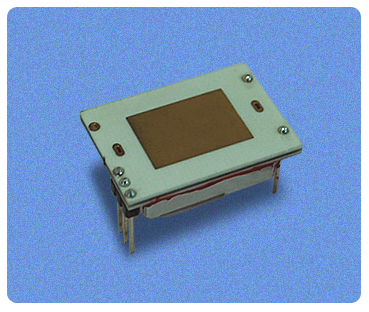

Products Name : Doppler sensor SKYD0580PH
Type : SKYD0580PH

#
Item
Specification
Electrical Characteristics  (at +25℃, +5VDC)
1.
Operating Voltage
5.0±0.2V  DC
2.
Operating Current
14 mA typ. 20 mA max.
3.
Center Frequency
5.8GHz±75MHz
4.
Frequency Stability
±5 MHz max. (-30 to +55℃)
5.
Output Power
0dBm typ
6.
Return Loss Sensitivity
-90dBc typ.
7.
Second Harmonic Emission
1μW max.
8.
Antenna Gain
5.42dBi
9.
Antenna Beamwidth (-3dB)
                        E-Plane
                        H-Plane

 70 deg. nom.
 80 deg. nom.
10.
IF frequency
1~32Hz (Normal walking)
11.
IF Width
0~3mV
12.
Detection range
3~5m(Wall mounting)
Pulse Mode Operation
1.
Pulse Width
40μsec
2.
Duty Cycle
0.04
Absolute Maximum Ratings
1.
DC Input Voltage
+6 V  DC
2.
Operating Temperature Range
-30 to +55℃
3.
Storage Temperature Rang
-40 to +80℃
4.
Relative Humidity
95 % at 35℃
5.
Vibration
G=10
(f=30,50 Hz, t=10min., Direction; X, Y, Z)
6.
Shock
G=20
(Half Sine, 10msec., Direction; X, Y, Z)
Regulation
1.
Regulation for compliance
ETS 300 440
