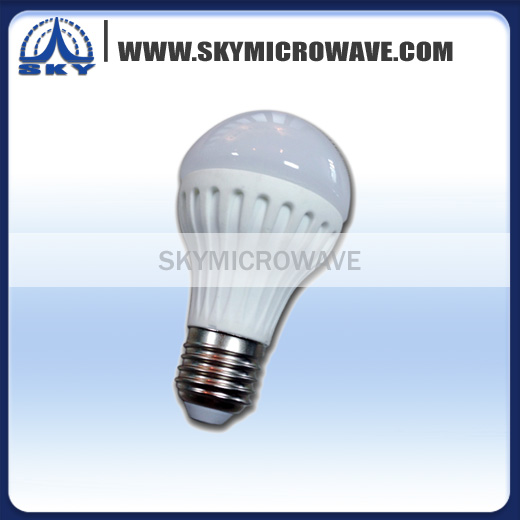

Products Name : doppler sensor LED BULB
Type : SKY-DPL-04D
Rated input:
100-240VAC (50/60HZ)
Efficiency:
≥0.5PF
Lamp type:
E27/E14
Power( full ON):
4W±10%(8LED beads, 0.5W,5730)
Power(awaiting time):
3W±10%
Standby consumption
<1W
RF frequency
5.8GHz±75MHz
Total lumens:
≥360LM
Lumens (at awaiting time)
≥250LM
Optional CCT:
3000K/4500K/6000K
CRI:
≥80
Life time:
≥30000hours
Sensing area:
Diameter 6~10m
Sensor switch:
◆Person enters in sensing area. It is fully ON.
◆ Person leaves out sensing area. It is dimming at 20% lumens and OFF after delay time.
Photo sensor:
◆ Ambient light is greater than 10LX. Light is OFF regardless of human occupancy.
◆ Ambient light is less than 10LX. Light is ON when human movement is detected.
Fixed setting:
(Custom)
◆ Person enters in sensing area. It is fully ON.
◆ Person leaves out sensing area. Light keeps fully on for 10s.Then it enters into 50 seconds awaiting time. Light turns OFF after 50s.
IP level:
Indoor use
Work temperature:
-20℃~40℃
Store temperature:
-40℃~65℃
Dimension:
φ60*110mm
Weight:
Packing:
90g
Paper and master carton.
Warranty:
1 year
